← back to “Ontogeny, Anatomy, Metabolism and Physiology of the Thyroid”

figure16

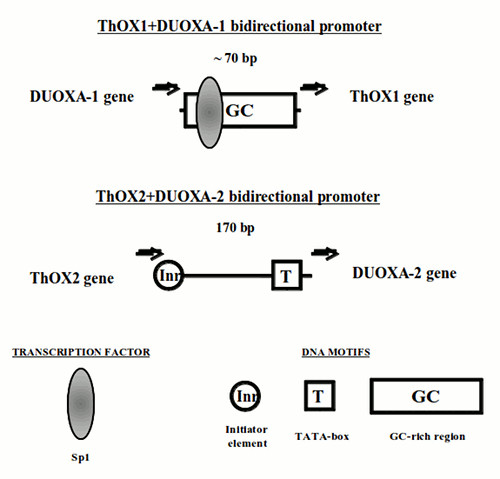

Fig. 1-16. Organization of the bidirectional promoters of ThOX and DUOXA genes as determined in the rat (439). The transcription starts are symbolized by arrows and the distances in base pairs separating them are indicated in both cases.

figure17atable1
