Acute and Subacute, and Riedel’s Thyroiditis

Last Updated:
Authors

CLASSIFICATION



The diagnostic term thyroiditis includes a group of inflammatory or inflammatory-like conditions. The terminology that has been employed is confusing, and no classification is ideal. We prefer the following nomenclature, which takes into account the cause when known.



  1. Infectious thyroiditis , also referred to as either acute or chronic, and which in fact may be either, along with the qualifying term suppurative (AST), nonsuppurative, or septic thyroiditis. It includes all forms of infection, other than viral, and is caused by invasion of the thyroid by bacteria, mycobacteria, fungi, protozoa, or flatworms. The disorder is rare.
  2. DeQuervain’s thyroiditis, commonly known as subacute thyroiditis (SAT ) but also termed subacute nonsuppurative thyroiditis, granulomatous, pseudotuberculous, pseudo-giant cell or giant cell thyroiditis, migratory or creeping thyroiditis, and struma granulomatosa. This condition, most likely of viral origin, lasts for a week to a few months, with a tendency to recur. The eponym was selected because of its uncertain cause.
  3. Autoimmune thyroiditis , commonly referred to as chronic, Hashimoto’s, or lymphocytic thyroiditis and also known as lymphadenoid goiter and struma lymphomatosa. This indolent disease usually persists for years and in the Western world is the principal cause of non-iatrogenic primary hypothyroidism. Nonspecific focal thyroiditis, characterized by local lymphoid cell infiltration without parenchymal changes, may be a variant of the autoimmune disease. The condition is covered in detail in Chapter 8. Another form of thyroiditis, also believed to be of autoimmune cause, has recently been described. It has been variably referred to as painless, silent, occult, subacute, subacute nonsuppurative, and atypical (silent) subacute thyroiditis, as well as hyperthyroiditis, transient thyrotoxicosis with low thyroidal RAIU and lymphocytic thyroiditis with spontaneously resolving hyperthyroidism. There is no agreement on an inclusive name. The features of this disease entity overlap deQuervain’s thyroiditis and Hashimoto’s thyroiditis. The clinical course, with the exception of a very high erythrocyte sedimentation rate and pain in the thyroid are indistinguishable from deQuervain’s thyroiditis. Yet, histologically, the condition cannot be differentiated from a milder form of Hashimoto’s disease. This condition often occurs in the postpartum period and is also termed postpartum thyroiditis. All forms of autoimmune thyroiditis are considered in Chapter 8.
  4. Riedel’s thyroiditis , another disorder of unknown etiology. Synonyms include Riedel’s struma, ligneous thyroiditis and invasive fibrous or chronic sclerosing thyroiditis. This condition is characterized by overgrowth of connective tissue which often extends into neighboring structures.
  5. Miscellaneous varieties of thyroid inflammation or infiltration including local manifestations of a generalized disease processes. Among these are sarcoid and amyloid involvement of the thyroid. Radiation and direct trauma to the thyroid gland may also cause thyroiditis.



INFECTIOUS THYROIDITIS



The thyroid gland is remarkably resistant to infection. This has been attributed to its high vascularity, lymphatic drainage, the presence of large amounts of iodine in the tissue, the fact that hydrogen peroxide is generated within the gland as a requirement for the synthesis of thyroid hormone and its normal encapsulated position away from external structures. However, in certain situations, particularly in children(1-4), a persistent fistula from the pyriform sinus may make the left lobe of the thyroid particularly susceptible to abscess formation (5) , (6) , (4) , (7-10). Acute suppurative thyroiditis (AST) is a rare condition, reported to account for 0.1-0.7% of thyroid disease(11) which may result in up to 12% or higher mortality if left untreated(12) , (11) , (13). Recurrent left-sided thyroid abscess has also been reported due to a fourth branchial arch sinus fistula (14). A review of 526 cases of congenital fourth branchial arch anomalies (15) noted that they presented with acute suppurative thyroiditis in 45% of cases. Acute thyroiditis from a periapical abscess of an inferior molar has been reported (16). In the immuno-compromised host, fungal infection may occur (17-20). Occasionally, acute bacterial suppurative thyroiditis occurs in children receiving cancer chemotherapy (21). Rarely, infection will occur in a cystic or degenerated nodule. As will be discussed, the principal differential diagnosis is generally between acute (AST), meaning infectious, and subacute (SAT), meaning post-viral (non-infectious) inflammation of the gland.



Etiology



Virtually any bacterium can infect the thyroid (Table 1). Streptococcus, staphylococcus, pneumococcus, salmonella, klebsiella (22-26), bacteroides, t. pallidum, pasteurella spp (27), multocida (28), porphyromonas(29), eikenella (30-32) and m. tuberculosis (33-36) have all been described. The subject has been extensively reviewed (17) , (37) , (38). In addition, certain fungi, including coccidioides immitis, aspergillus, actinomycosis, blastomycosis (39-42), candida albicans, nocardia (43-45), actinobacter baumanii (13) cryptococcus (46) and pneumocystis (47) have also been associated with thyroiditis. In the latter cases, the hosts have often been immuno-compromised, either due to malignancy or to AIDS (48) , (49). Rarely acute suppurative thyroiditis is due to thyroid abscess with deep neck infection(50). Malignancy may also be associated with thyroid abscess due to a fistulous connection (51), a thyroid abscess due to clostridium perfringens has been reported (52) and clostridium septicum is almost always associated with carcinoma of the colon (53). Metastatic breast cancer has been described as presenting clinically with acute thyroiditis (54). Recently, the role of diagnostic fine needle thyroid aspiration has been emphasized, firstly as a factor in the cause of acute suppurative thyroiditis with associated thyrotoxicosis in a patient with atopic dermatitis (55), also being causative in a case of secondary infection after aspirating a simple cyst (52), associated with necrosis in a patient with papillary thyroid carcinoma (56) and an intra-thyroidal abscess in a multinodular goiter which grew E. coli (57). Care should be taken when performing FNAC in patients who may be susceptible to tracking of infection into the thyroid.



Most commonly, however, especially in children, infection of the thyroid gland is a result of direct extension from an internal fistula from the pyriform sinus (4) , (58) , (7) , (9) , (59) , (38) , (60). This tract is thought to represent the course of migration of the ultimo branchial body from the site of its embryonic origin in the fifth pharyngeal pouch (8). Careful histopathological studies of these fistulae have demonstrated that they are lined by squamous columnar or ciliated epithelium and occasionally form branches in the thyroid lobe (4) , (9). In addition, occasional cells positive for calcitonin have been found in the fistulae and increased numbers of C-cells were noted in the thyroid lobe at the point of termination of the tract. The predominance of acute thyroiditis in the left lobe of the thyroid gland, particularly in infants and children, is explained by the fact that the right ultimo branchial body is often atrophic and does not develop in the human (as well as in other species such as reptiles). The reason for this phenomenon is not known. Acute thyroiditis may involve a normal gland, arise in a multinodular goiter (61) or even Hashimoto’s thyroiditis . At times, no source of infection can be demonstrated. The possibility of a persistent thyroglossal duct should be considered for patients with midline infections (62). Acute thyroiditis has arisen as the initial presentation of juvenile systemic lupus erythematosus (63) and has also occurred due to septic emboli derived from infective endocarditis(64) , (65).



Pathology Pathological examination reveals characteristic changes of acute inflammation. With bacterial infections, heavy polymorphonuclear and lymphocytic cellular infiltrate is found in the initial phase, often with necrosis and abscess formation. Fibrosis is prominent as healing occurs. In material obtained by fine needle aspiration, the infectious agent may be seen on a gram, acid fast or appropriate fungal stains (7) and grown out in culture for antibiotic sensitivity assessment.



Clinical Manifestations



Although acute thyroiditis is quite rare (about 2 patients per year in a large tertiary care hospital), cases of suppurative thyroiditis are increasing due to the higher incidence of immune-compromised patients. It has been estimated to be much more common in the pediatric age group because of its relationship with pyriform sinus fistulae, where 90% of lesions develop in the left lobe of the thyroid (65) although it is still quite unusual. It has been estimated that about 8% of cases occur in adulthood (66-68) , (65) , (69-72). The dominant clinical symptom is pain in the region of the thyroid gland which may subsequently enlarge and become palpably hot and tender. The patient is unable to extend the neck and often sits with the neck flexed in order to avoid pressure on the thyroid gland. Swallowing is painful. There are usually signs of infection in structures adjacent to the thyroid, local lymphadenopathy as well as temperature elevation and, if bacteremia occurs, chills. Gas formation with suppurative thyroiditis has been noted (73-76). Symptoms are generally more obvious in children than in adults. Adults may present with a vague slightly painful mass in the thyroid region without fever, which may raise the possibility of a malignancy. Suppurative thyroiditis may even spread to the chest producing necrotizing mediastinitis and pericarditis in the absence of a pyriform sinus fistula (77) , (50) , (78) , (79). It may occur more commonly in the fall and winter following upper respiratory tract infections.



In general, there are no signs or symptoms of hyper- or hypothyroidism. However, exceptions to both have been reported particularly if the thyroiditis is generalized, such as occurs with fungal processes (46) or mycobacterial infections. At times, even in patients with bacterial thyroiditis, destruction of the thyroid gland is sufficient to release thyroid hormone in amounts sufficient to cause symptomatic thyrotoxicosis (28) , (34). The adult thyroid gland contains approximately 600 ug of T4/g (80). Given a typical 15 to 20 g gland, sufficient hormone can be released to cause transient thyrotoxicosis. Associated thyrotoxicosis has also been reported in children and adults (5) , (28) , (55) , (81), in one series, 12% presented with thyrotoxicosis and 17% were said to be hypothyroid(13). This variety of thyroid function findings clearly increases the difficulty of differentiating AST from subacute thyroiditis (SAT) as both present with thyroidal pain. Unique presentations of AST have been reported where initial thyrotoxicosis has been followed by hypothyroidism and spontaneous normalization of thyroid function after treatment of the AST(29).



Diagnosis



Pain in the anterior neck will usually lead to a consideration of the possibility of thyroiditis. Since the major differential diagnosis will lie between acute suppurative thyroiditis and subacute thyroiditis, it is critical to compare the history, physical, and particularly laboratory data in these two conditions (see Table 3). In general, the patient with acute thyroiditis appears septic, has greater and more localized pain in the thyroid gland, may have an associated upper respiratory infection, has lymphadenopathy and may be immuno-compromised. Localization of the tenderness to the left lobe should suggest the possibility of an infection as should any erythema or apparent abscess formation. The presence of an elevated white blood count with a shift to the left would argue for infection, however, elevations in sedimentation rate are common in both acute and subacute thyroiditis. As mentioned, patients with bacterial thyroiditis are



Table 1 Microbiology of Acute Suppurative Thyroiditis
Aerobic Staphylococcus aureus Streptococcus pyogenes Streptococcus epidermidis Streptococcus pneumoniae
Anaerobic Clostridium septicum(53) Gram negative bacilli Peptostreptococcus spp.
Rare
Bacterial Atypical mycobacteria Clostidium perfringens(52) Eikenella corrodens Enterobacteriaceae Haemophilus influenzae Klebsiella spp. Mycobacterium tuberculosis Porphyromonas(29) Salmonella spp. Streptococcus viridans Treponema pallidum Echinococcus spp
Fungal Aspergillus spp Blastomycosis Candida spp. Coccidioides immitis Pneumocystis jiroveci
Parasitic Trypanosoma



usually euthyroid but a thyrotoxic presentation has been noted in 8-12%(82) , (13) and hypothyroidism was noted in 17% of one series(82). Thyrotoxicosis is clearly more common, 52% at 7 days and 65% by 30 days of neck pain in patients with subacute thyroiditis (83). The thyrotoxic presentation therefore makes for a difficult differential diagnostic problem to separate AST from SAT which may have significant impact in the selection of initial therapy.



Depending on the age and clinical circumstances, one may wish to proceed with invasive or non-invasive studies. Discriminating tests for recognizing a difference between AST and SAT have been considered a radio-nuclide uptake or scan usually showing a very low value in subacute thyroiditis with a normal value found in the patient with very localized mild bacterial thyroiditis (38). More frequently however both conditions are associated with a low 123-I uptake at initial presentation(84) limiting the power of nuclear scanning to effectively differentiated these two conditions.



A thyroid ultrasound may be done but characteristic findings vary depending on the phase of AST during which the patient is observed. In the early inflammatory phase of AST, when obvious abscess formation is not evident, the ultrasound may show a localized hypoechoic process with an obscure border and effacement between the thyroid and surrounding perithyroidal tissues(85). During the acute inflammatory stage of AST, clear cut abscess formation is noted in the affected thyroidal tissue(85). Alternatively, the application of sonoelastography may reveal very stiff lesions corresponding to the areas of the thyroid which are especially painful(86) during acute phases of the AST episode which soften significantly as the patient responds to treatment(86). As the AST resolves with appropriate treatment, ultrasound images may demonstrate deformity of the gland characterized by atrophy of the affected lobe, air pockets in the thyroidal tissue and scarring of the perithyroidal tissues(85).



A CT scan may be useful in identifying the location of the abscess, but this has been said to be required only in unusual situations (87). The CT findings also vary with the stage of AST. In the early inflammatory stage, nonspecific low density areas in the swollen thyroid along with potential tracheal displacement may be seen(85). In the acute inflammatory stage, a CT can also demonstrate edema of the ipsilateral hypopharynx, and abscess formation. In the late inflammatory stage, deformity of the thyroid, atrophy of the affected lobe and scarring of the perithyroidal tissues may be observed(85). Recent reviews indicate a significant role for CT in the initial evaluation of those with AST(85) , (11). As outlined above, during the earliest stages of AST both CT and ultrasound findings may fail to effectively differentiate between AST and SAT. In this circumstance the use of a fine needle aspiration (FNA) has been demonstrated to be very useful as outlined below. Gallium scans are sometimes performed in the course of an evaluation for a fever of unknown origin. Localization of gallium to the thyroid gland would be a very useful finding confirming thyroid inflammation as the source of the problem but the differential of gallium positive thyroid tissue will also include the presence of Riedel’s thyroiditis(88).



If an infectious process is identified, particularly of the left lobe of a younger individual, then a barium swallow should be performed with attention to the possibility of a fistulous tract located on the left side between the pyriform sinus and the thyroid gland. The barium swallow has very good sensitivity in detecting the presence of the fistular tracts as 89-97% of those examined in early and acute stages of AST were confirmed with this technique(85). Other methods of documenting the presence of a fistula are also utilized. On follow up ultrasound an ‘emerging echogenic tract sign’ suggests an associated pyriform sinus thyroid fistula (89). During a CT scan procedure the patient can be asked to blow into a syringe, the so called “trumpet maneuver”, which may help to identify a piriform sinus fistula (90), a recent series suggests that timing may influence the ability of this maneuver to demonstrate the presence of the fistula as only 20% of those examined in the acute inflammatory phase revealed a fistula while 54% of those evaluated in the late inflammatory phase had a fistula documented(85) with the “trumpet maneuver”. A ‘light guided procedure’ to visualize the tract may also help (91). Transnasal flexible fiberoptic laryngoscopy has become increasingly utilized to identify the presence of the fistular tract(11). This approach has been estimated to have similar sensitivity of documenting the tracts as barium swallow and CT methods(92-94) and can also be utilized for the instillation of chemocauterizing agents at an appropriate time after the resolution of the acute infection(95) , (92) , (82) , (93).



Occasionally, pain from an infectious process elsewhere in the neck will present as anterior neck tenderness. For example, a retropharyngeal abscess may present with typical symptoms of acute thyroiditis. The thyroid gland, however, will have a normal uptake, be normal on scan, and only on CT scan will the retropharyngeal abscess be recognized. The tendency for the pain of thyroid inflammation to be referred to the throat or ears should be kept in mind, although recognition of the anatomic source of the problem is usually not such a difficult issue in patients with acute thyroiditis due to their localized symptoms. While patients with tuberculosis or parasitic infections tend to have a more indolent course, these infections can present with acute symptoms and this possibility should be considered if the epidemiology is consistent. For example, thyroidal echinococcosis occurs in countries in which this parasite is endemic (96). Trypanosomiasis of the thyroid has also been reported (38).



A fine needle aspiration (FNA) performed in either of the acute phases of AST is important as the FNA has a superior ability to differentiate the patient with AST from those with subacute thyroiditis by cytologic criteria and also provides appropriate bacteriologic specificity allowing more accurate antibiotic selection(11) for the patient documented to have AST. In addition, transcutaneous aspiration of the infectious material can be performed to relieve pressure on a displaced trachea in patients with a compromised airway(11). Finally FNA may be seen as the most accurate means of differential diagnosis(97) when a thyrotoxic presentation is encountered. Establishing a firm diagnosis of AST allows appropriate antibiotic therapy to be prescribed when a trial of glucocorticoids for empirically assumed SAT might result in both delay in diagnosis as well as initiation of a potentially wrong therapy(29).



Treatment



A recent clinical review (11) concluded that there may be a trend toward less invasive management during active inflammation and infection. Despite lack of randomized controlled trials algorithms for acute and long term management were suggested by these authors. Miyauchi (84), who has a very large experience of the condition, has cautioned that consideration of the basic anomaly predisposing the patient to thyroid gland infection must be duly considered. The diagnosis and choice of antibiotic therapy are often aided by microscopic examination and appropriate staining of a fine needle aspirate. The procedure is best done under ultrasound guidance so that the source of the specimen is identified. It may also serve as a mechanism for drainage of an abscess and can be repeated to facilitate healing. Some abscesses will require surgical exploration and drainage. The choice of therapy will also depend on the immune status of the patient. Systemic antibiotics are required for severe infections. Candida albicans thyroiditis can be treated with amphotericin B and 5 fluconazole 100 mg daily. The proper treatment of an acute thyroiditis in children generally requires the surgical removal of the fistula (4) , (7) , (9), although surgical treatment should be delayed until the inflammatory process is resolved (98) , (99).Combining this with partial thyroidectomy may further decrease the recurrence rate (15). Alternatively, fistula tract ablation can be achieved either by surgical resection which has been associated with recurrence free survival (85), or less invasively obliterated with the instillation of a chemocauterizing agent which has also been demonstrated to result is satisfactory outcomes (95) , (92) , (85) , (93).



Prognosis



The disease may occasionally prove fatal(79). In some patients with thyroiditis, the destruction may be sufficiently severe that permanent hypothyroidism results (61). Thus, patients with a particularly diffuse thyroiditis should have follow-up thyroid function studies performed to determine that this has not occurred. Surgical removal of a fistula or branchial pouch sinus (98) , (99) is required to prevent recurrence.



SUBACUTE THYROIDITIS



Subacute thyroiditis (SAT) sometimes referred to as granulomatous or De Quervain’s thyroiditis is a spontaneously remitting inflammatory condition of the thyroid gland that may last for weeks to several months (100) , (38) , (101). It has a tendency to recur. The gland is typically involved as a whole, and thyroidal RAIU is much depressed. Transient hyperthyroxinemia, elevation of the serum thyroglobulin concentration and the erythrocyte sedimentation rate and sometimes the WBC during the early acute phase are characteristic if not pathognomic.



Etiology



A cause can rarely be established. A tendency for the disease to follow upper respiratory tract infections or sore throats has suggested a viral infection. Earlier suggestions that the disease may represent a bacterial infection have been disproven. An autoimmune reaction is also unlikely. The development during the illness of cell-mediated immunity against various thyroid cell particulate fractions or crude antigens appears to be related to the release of these materials during tissue destruction(102) , (103).



Although the search for a viral cause has usually been unrewarding, a few cases seem to be due to the virus that causes mumps(104) , (101). The disease has occurred in epidemic form. High titers of mumps antibodies have been found in some patients with subacute thyroiditis, and occasionally parotitis or orchitis is associated with thyroiditis. The mumps virus has been cultured directly from thyroid tissue involved by subacute thyroiditis. Although the mumps virus seems to be one discrete etiologic factor, the disease has been reported in association with other viral conditions including measles, influenza, H1N1 influenza(105), adenovirus infection, infectious mononucleosis(106), myocarditis, cat scratch fever, and coxsackie virus (Figure 1) (107), most recently SAT has been reported following hand-foot-mouth disease due to coxsackie B4(108). Two comprehensive studies (109) , (110) failed to find evidence of enteroviruses in 27 patients and Epstein-Barr virus or cytomegalo virus in 10 patients, respectively but a single case report has implicated EB virus in a case of subacute thyroiditis with typical clinical features (111) and cytomegalo virus has now been reported in an infant (112).

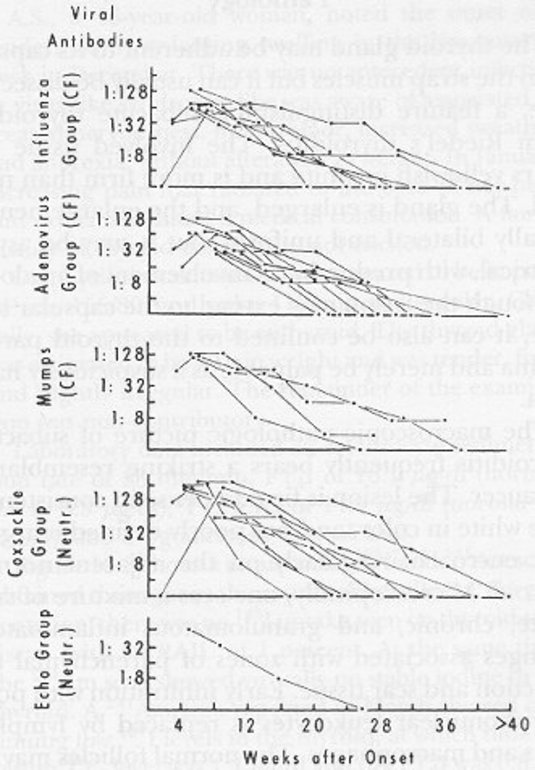

Figure 1. Viral antibody titers in subacute thyroiditis. The graph shows serial viral antibody titers in 32 patients who had 4-fold changes in the dilution of these antibodies. Only the single viral antibody showing the greatest change in dilution during the period of observation is depicted for each patient. The antibody titers are characteristically high at the onset of the illness and gradually diminish. (From Volpe et al, [62

Numerous attempts to culture viruses from cases not associated with mumps have failed. Virus-like particles have been demonstrated in the follicular epithelium of a single patient suffering from subacute thyroiditis (107). However, viral antibody titers to common respiratory tract viruses are often elevated in these patients. Since the titers fall promptly, and multiple viral antibodies may appear in the same patient, the elevation probably is an anamnestic response to the inflammatory condition. (Figure 1, above) As stated in a recent review (114) it seems that the thyroid could respond with thyroiditis after invasion by a variety of different viruses but no single agent is likely to be causative.



Histo-compatibility studies show that 72% of patients with subacute thyroiditis manifest HLA-Bw35 (115). Familial occurrence of subacute thyroiditis associated with HLA-B35 has been reported (116-119). Thus, the susceptibility to subacute thyroiditis is genetically influenced and it has also been suggested that subacute thyroiditis might occur by transmission of viral infection in genetically predisposed individuals (112). A reported association between subacute thyroiditis and acute febrile neutrophilic dermatosis (Sweet’s syndrome) (120) , (121) may imply a common role for cytokines in both these conditions.



New treatments, particularly those in which there is manipulation of the immune system, have led to the development of subacute thyroiditis (122). Infusion of interleukin 2 caused hyperthyroxinemia with a low radioiodine uptake in six patients who received this in combination with tumor necrosis factor (TNF) α or γ interferon (123). The patients proceeded to pass through the pattern of hyperthyroidism and transient hypothyroidism, with a re-establishment of normal thyroid function typical of the patient with autoimmune painless thyroiditis. However, none of the patients had detectable antithyroid antibodies. This condition is thus intermediate between subacute lymphocytic (painless) thyroiditis (Chapter 13) and subacute thyroiditis which is typically painful. Patients have developed subacute thyroiditis after influenza vaccination (124) , (125) suggesting immune alteration as a contributory factor. In patients with chronic hepatitis C studies following interferon therapy (IFN) showed that a minority (15%) developed a destructive thyroiditis while others had a mild elevation of TSH (123). IFN can exacerbate previous thyroid autoimmunity and cause destructive thyroidal changes de novo. Subacute thyroiditis has also been noted in patients treated with combination therapy of IFN plus ribavirin for this disease (126) , (127), as well as during treatment of hepatitis B with Interferon (128). Peginterferon alpha-2a has also been reported to cause subacute thyroiditis (129) and the condition is seen in Takayasu’s arteritis suggesting an immune abnormality (130). On the other hand, subacute thyroiditis has been reported in patients receiving long term immunosuppressive therapy suggesting a minimal role for autoimmunity in the condition (131) , (132). Other reports of subacute thyroiditis for example with renal cell carcinoma (133), following the administration of cardiac catheterization dye(134), after gastric bypass (135) or after ginger ingestion (136) do not clearly contribute to an enhanced understanding of its etiology.



Pathology



The thyroid gland may be adherent to its capsule or to the strap muscles but it can usually be dissected free, a feature distinguishing subacute thyroiditis from Riedel’s thyroiditis. The involved tissue appears yellowish or white and is more firm than normal. The gland is enlarged, and the enlargement is usually bilateral and uniform, but it may be asymmetrical, with predominant involvement of one lobe. Although the lesion may extend to the capsular surface, it can also be confined to the thyroid parenchyma and merely be palpable as a suspiciously hard area.



The macroscopic pathologic picture of subacute thyroiditis frequently bears a striking resemblance to cancer. The lesion is firm to dense in consistency, pale white in color, and has poorly defined margins that encroach irregularly on the adjacent normal thyroid. Microscopically, one sees a mixture of subacute, chronic, and granulomatous inflammatory changes associated with zones of parenchymal destruction and scar tissue. Early infiltration with polymorphonuclear leukocytes is replaced by lymphocytes and macrophages. The normal follicles may be largely replaced by an inflammatory reaction, but a few small follicles containing colloid remain (Fig. 2, below). Three dimensional cytomorphological analysis of fine needle aspiration biopsy samples from patients with subacute thyroiditis examined with scanning and transmission electron microscopy has shown a loss of a uniform, honeycomb cellular arrangement; variation in size and decrease or shortening of microvilli in follicular cells together with the appearance of round or ovoid giant cells (137). The most distinctive feature is the granuloma, consisting of giant cells clustered about foci of degenerating thyroid follicles (Fig. 2). The early literature contains accounts of tuberculous thyroiditis, a diagnosis largely based on the granulomatous tissue reaction, from which the descriptive but unfortunate term pseudotuberculous thyroiditis arose (138). Data on the mechanism of inflammation and the pathogenesis of subacute thyroiditis at the cellular level are sparse. However, a study of apoptosis and expression of Bcl 1-2 family proteins in 11 patients with SAT suggests that apoptotic mechanisms may be involved in the development of SAT (139). Growth factor rich monocytes/macrophages (containing VEGF, beta FGF, PDGF and TGF beta 1) are involved in the granulomatous stage (140). EGF is important in the regenerative stage as it has mitogenic effects on the thyrocyte. VEGF and beta FGF contribute to the angiogenesis at both these stages of the disease. Factors influencing the severity of the acute phase response during the course of SAT include serum interleukin -1 receptor antagonist which may have a significant anti-inflammatory role (141); also, a decrease in TNF alpha results in earlier resolution of experimentally induced granulomatous thyroiditis (142). The role of TNF- related apoptosis-inducing ligand (TRAIL) in promoting resolution of this condition is also being investigated (143).



Mast cells play an important part in the repair process of thyroid tissue affected by the disease via production of growth factors and biomolecules which modulate thyroid folliculogenesis and angiogenesis (144).

Figure 2. Subacute thyroiditis. Note the discrete granulomas, with giant cells, and the diffuse fibrosis (85 X).

INCIDENCE



Subacute thyroiditis is encountered infrequently, but each year a handful of cases will be identified in a busy thyroid clinic. Woolner et al (138) collected 162 cases diagnosed on clinical grounds at the Mayo Clinic over a 5-year period; during the same time, 1,250 patients with Graves’ disease were seen. Thus, the disease had approximately one-eighth the incidence of Graves’ disease in this clinic population. During an evaluation of subtypes of hypothyroidism over a 4 year period in Denmark an incidence of subacute thyroiditis of 1.8% was found in a cohort of 685 patients with hypothyroidism (145) , (100). Although the disease has been described at all ages, it is rare in children (100) , (146). Female patients have outnumbered male patients in a ratio of 1.9-6:1, with a preponderance of cases in the third to fifth decades (147) , (148) , (37) , (101) , (138) and it has been noted as a rare cause of hyperthyroidism in pregnancy (149) , (150). In 160 patients studied during 37 years at the Mayo Clinic an age and sex adjusted incidence of 4.9 cases/100,000/year was noted (147).



Clinical Manifestations



Characteristically, the patient has severe pain and extreme tenderness in the thyroid region. A small minority of patients have been noted to present with painless or minimally painful subacute thyroiditis following viral symptomatology (151). These may be regarded as atypical subacute thyroiditis patients but their natural history of the disease is not known. Subacute thyroiditis has been reported to have occurred during the first trimester of pregnancy(149). When the symptom is difficulty in swallowing, the disorder may be initially mistaken for pharyngitis. Transient vocal cord paresis may occur (152). At times, the pain begins in one pole and then spreads rapidly to involve the rest of the gland (“creeping thyroiditis”). Pain may radiate to the jaw or the ears. Malaise, fatigue, myalgia and arthralgia are common. A mild to moderate fever is expected, and at times a high, swinging fever with temperatures above 104°F (40.0°C). The disease may reach its peak within 3 to 4 days and subside and disappear within a week, but more typically, a gradual onset extends over 1 to 2 weeks and continues with a fluctuating intensity for 3 to 6 weeks. Several recurrences of diminishing intensity extending over many months may be the unhappy fate of the patient.



The thyroid gland is typically enlarged two or three times the normal size or larger and is tender to palpation, sometimes exquisitely so. It is smooth and firm. Occasionally the condition may be confined to one lobe (153) , (154). Approximately one-half of the patients present during the first weeks of the illness, with symptoms of thyrotoxicosis, including nervousness, heat intolerance, palpitations, – even ventricular tachycardia (155), tremulousness, and increased sweating. These symptoms are caused by excessive release of preformed thyroid hormone from the thyroid gland during the acute phase of the inflammatory process. At least 2 cases of thyroid storm due to subacute thyroiditis have been described (156) , (157) and adverse cardiac outcomes have been reported even in individuals without preexisting cardiac history or lesions(158). As the disease process subsides, transient hypothyroidism occurs in about one-quarter of the patients. Ultimately thyroid function returns to normal and permanent hypothyroidism occurs in less than 10 percent of the cases (37) , (38) , (101). Occasionally the condition may be painless and present as fever of unknown origin (159) or associated with other findings and mimicking conditions such as temporal arteritis(160). Some clinical and laboratory features recorded in 2 recent series of SAT are shown in Table 2 (161) , (83). Liver function test abnormalities are found in half the patients and return to normal in a few months (162).



TABLE 2 Clinical Features of Subacute Thyroiditis
Feature Japan Israel
Number 852 56
Females(%) 87 70
Season summer-autumn no effect
Recurrence 1.6% 9%
Temp >38 0 28%
Thyrotoxic symptoms 60%
Hypothyroid phase 55%
Labs-peak levels 1 week
ATA 25%
US:
Bilateral hypoechogenicity 50% 70%
Nodules 70%
Disease duration (days) 77
ATA: Antithyroid antibodies. US: Thyroid ultrasound. –: no dataData derived from refs (161) , (83).



Diagnosis



Table 3 provides a comparison between the clinical and laboratory findings of patients with subacute and acute thyroiditis (163-167) , (38) , (168). Laboratory examination may disclose a moderate leukocytosis. A curious and striking elevation of the erythrocyte sedimentation rate, at times above 100 mm/hr, or an elevated level of serum C-reactive protein (169) is a useful diagnostic clue. Recently the identification of CRP in salivary samples provides a convenient source for documenting the presence of abnormal levels in those with SAT(170). Short of a tissue diagnosis, most helpful is the characteristic combination of elevated erythrocyte sedimentation rate, high serum T4, T3, and TG concentrations in the presence of low thyroidal RAIU, TSH, and an absent or low titer of circulating TPO and TG antibodies. While the estimation of thyrotropin receptor antibodies (TRAb) in a thyrotoxic patient may be clinically useful in identifying Graves’ disease there have been reports of positive TRAb in patients with subacute thyroiditis although the frequency of this finding is low (171-174). Mild anemia and hyperglobulinemia may be present.



The value of a 99m-Tc-pertechnetate scintigraphy as a marker of disease activity and severity has been described (175). Pertechnetate scanning, although inexpensive and convenient, typically reveals little to no uptake and thus no visualization of the SAT process(175) , (176), a finding consistently reported in the literature(177) , (105) , (108) , (178) , (158) , (179). Further imaging studies have shown diffuse increased uptake of Tc-99m sestamibi(176) and Tc-99m tetrofosmin(175) in the thyroid region of patients in the acute phase (thyrotoxic) of subacute thyroiditis suggesting an ability of both agents to detect the inflammatory process associated with the disease (175) , (176). In the same patients color Doppler ultrasonography showed an absence of vascularization in the acute phase and its use in the differential diagnosis of unclear cases has been emphasized (180) , (181). Standard ultrasonigraphic images are characterized by hypoechoic appearance of the affected tissue the volume of which correlates with the severity of clinical discomfort(182). The application of newer technologies such as sonoelastography has the capacity to demonstrate markedly decreased elasticity (enhanced stiffness) in SAT lesions(86). Subacute thyroiditis may obscure the coexistence of papillary carcinoma in cases presenting with ultrasonographically diffuse hypoechoic areas (183). Subacute thyroiditis with thyrotoxicosis may also be distinguished from Graves’ hyperthyroidism by using T1- and T2- diffusion weighted magnetic resonance imaging (184) and as an intense area of uptake on (18) F-FDG PET/CT(179) , (185) although these investigation may not be available or even desirable in all centers. Fine needle aspiration biopsy is often diagnostic although patients are often alarmed at the prospect of this test due to the pain in the thyroid. However FNA may be helpful in ruling out malignancy (186) and the infection associated with localized, painful lesions of AST (see above).



Table 3. Features Useful in Differentiating Acute Suppurative Thyroiditis and Subacute Thyroiditis



Characteristic Acute Thyroiditis Subacute Thyroiditis
History Preceding upper respiratory infection 88% 17%
Fever 100% 54%
Symptoms of thyrotoxicosis Uncommon 47%
Sore throat 90% 36%
Physical Examination of the thyroid Painful thyroid swelling 100% 77%
Left side affected 85+% not specific
Migrating thyroid tenderness Possible 27%
Erythema of overlying skin 83% not usually
Laboratory Elevated white blood cell count 57% 25-50%
Erythrocyte sedimentation rate (>30mm/hr) 100% 85%
Abnormal thyroid hormone levels(elevated or depressed) 5-10% 60%
Alkaline phosphatase, transaminases increased Rare common
Needle Aspiration Purulent, bacteria or fungi present ~100% 0
Lymphocytes, macrophages, some polys, giant cells 0 ~100%
Radiological 123 I uptake low Common ~100%
Abnormal thyroid scan 92% Non-visualized
Thyroid scan or ultrasound helpful in diagnosis 75% Non-specific
Gallium scan positive ~100% ~100%
18 F-FDG-PET Positive Positive
Barium swallow showing fistula Common 0
CT scan useful Varies not indicated
Clinical Course Clinical response to glucocorticoid treatment Transient 100%
Incision and drainage required 85% No
Recurrence following operative drainage 16% No
Pyriform sinus fistula discovered 96% No
Modified from Szabo and Allen (38), see also Shabb & Solti (186)



Subacute Thyroiditis Case Illustration



A.S., a 46-year old woman, noted the onset of a tender, slowly enlarging swelling in the low anterior neck in December. There was no antecedent infection or virus-like syndrome. She was aware of associated increased nervousness, mild tremor, increased sweating, and anorexia, without alteration in weight. In January, increasing pain that radiated to the back of her head and orbits necessitated medical consultation. A family history of thyroid disease was not elicited.



On physical examination she appeared to be in pain, BP was 155/80, and pulse 112/min and regular. Clinically, she appeared to be euthyroid. The thyroid gland was estimated to be 40 grams in weight and was tender, firm, and slightly irregular. The remainder of the examination was non-contributory.



Laboratory data included an erythrocyte sedimentation rate of 58 mm/min, FT4I of 16.1 m g/dl (normal, 3.6 to 9.3 m g/dl), TT4 level of 14.9 m g/dl (normal 4.2 to 9.4), and a Tg antibody titer of 1/40 (negative).



Figure 3 (below) shows a sequence of 125 I and 241 Am scans obtained throughout the course of her illness. On presentation, there was no 125I uptake seen on thyroid scintiscan, with an RAIU of 1 percent. At the same time, the 241Am scan showed virtually no stable iodine in the thyroid. A 241Am scan repeated in March showed continuing low 127I levels in the thyroid, at which time the serum TT4 level was 1.7 mg/dl and the FT4I was 0.8 m g/dl. The 241Am scans on these two dates demonstrate mainly background radiation scatter. With the resolution of her clinical syndrome over the next few months, the results of the thyroid scans were seen to return to normal. The result of the 125I scintiscan in June was completely normal, with an RAIU of 20 percent, at which time her TT4 level and FT4I had returned to the normal range. The 241Am scan 3 months later showed some re-accumulation of 127I, but the stable iodine store was still reduced. The last 241Am scan 14 months after onset demonstrated total repletion of her thyroidal 127I stores. At this time, the gland was normal in size (weight 20 g) and consistency.

Figure 3. Serial 125 I scintiscans and 241 Am fluorescent scans in a patient during the course of subacute thyroiditis. The first two fluorescent scans, done at a high sensitivity setting without background subtraction, have much neck

Figure 3. Serial 125 I scintiscans and 241 Am fluorescent scans in a patient during the course of subacute thyroiditis. The first two fluorescent scans, done at a high sensitivity setting without background subtraction, have much neck “background” but demonstrate virtually no 127 I in the thyroid. (From Rapoport et al, (166) with permission.)



If subacute thyroiditis affects only one part of the thyroid gland, the serum T4 concentration and thyroidal RAIU may be entirely normal. A thyroid scan done with either radioactive iodine of 99m-Tc-pertchnetate will demonstrate failure of the involved areas of the gland to concentrate the tracer. When the thyroid is diffusely involved, which is more typical, a dramatic disturbance in iodine metabolism is observed.



During the initial phase of the disease, the RAIU is depressed or entirely absent and the concentrations of serum T4 and T3 are often elevated. Due to the concomitant release of non-hydrolyzed iodoproteins from the inflamed tissue, the serum thyroglobulin level is also high. During this phase the serum TSH level is low. Analysis of the TSH suppression seen in thyrotoxic patients indicates that patients with SAT may demonstrate suppressed but detectable levels of TSH while those with Graves’ disease or silent thyroiditis have undetectable TSH values(187). As those with SAT are evaluated sooner in the course of thyrotoxicosis due to the pain of the condition, the duration of the thyrotoxicosis is less, leading to proportionally less TSH suppression. This finding has been proposed to be useful in the differential diagnosis of these thyrotoxic states(187). The TSH response to TRH is suppressed (164) due to the high levels of circulating thyroid hormone. Iodide that is collected and metabolized by the gland is rapidly secreted because of the decreased ability to store colloid (166). At this time, the involved tissue shows decreased but not necessarily depleted stores of iodine, as determined by x-ray fluorescence (163) , (166), a study which is not readily available in most clinical settings in the USA. Administration of TSH will fail to produce a normal increase in RAIU. Evidently, thyroid cell damage reduces the ability of the gland to respond to TSH. As the process subsides, the serum T4, T3, and TG levels decline, but the serum TSH level remains suppressed. The normal concentrations of SHBG sometimes observed in the thyrotoxic phase probably reflects the short duration of exposure to increased thyroid hormone (188). Later, during the recovery phase, the RAIU becomes elevated with the resumption of the ability of the thyroid gland to concentrate iodide. The serum T4 concentration may fall below normal; the TSH level may become elevated. Usually after several weeks or months, all the parameters of thyroid function return to normal (Fig.4). Restoration of iodine stores appears to be much slower and may take more than a year after the complete clinical remission (163) , (166). In about 2% of patients subacute thyroiditis may trigger auto-reactive B cells to produce TSH receptor antibodies, resulting in TSH antibody associated thyroid dysfunction in some patients (172). This finding may be a potential explanation of the apparent occurrence of Graves’ disease following an episode of SAT(189).

Figure 4. Thyroid function in a patient during the course of deQuervain’s (subacute) thyroiditis. During the thyrotoxic phase (days 10 to 20), the serum TG concentration was greatly elevated, the FTI was high, and TSH was suppressed; the erythrocyte sedimentation rate was 86 mm/hr, and the thyroidal RAIU was 2 percent. The TG level and FTI declined in parallel. During the phase of hypothyroidism (days 30 to 63), when the FTI was below normal, a modest transient increase in the serum TG level occurred in parallel with the increase in serum TSH. All parameters of thyroid function were normal by day 150, 5 months after the onset of symptoms.

Differential Diagnosis

The patient presenting with painful neck symptoms is frequently empirically treated with antibiotics with minimal evaluation in general practice only later to be found to have thyroid related disease(178). Diagnosis is usually not difficult once the patient is seen by the specialist. With an acutely enlarged, tender thyroid, an RAIU near zero, and elevated serum T4, T3, thyroglobulin concentrations and ESR, the diagnosis is almost certain. Circulating thyroid autoantibodies are absent or the titer is low. Among the diagnostic alternatives, the uncommon presentation of thyrotoxicosis in infectious thyroiditis must be considered(29) and the possibility of invading bacteria excluded (see Table 2). Rarely a fever of unknown origin may suggest temporal arteritis but is actually due to subacute thyroiditis (160). Additionally, because of the radiation of painful thyroid into the jaw area the presence of dental pain may be confused with SAT(190). The thyroid in Hashimoto’s thyroiditis (HT) may be slightly tender and painful, but this event is rare, and the typical disturbances in iodine metabolism and erythrocyte sedimentation rate are rarely found. Markers of inflammation such as CRP as measured in the saliva are normal in HT when compared to controls but are grossly elevated in the patient with SAT(170).

Standard thyroid ultrasonography may appear similar with hypoechoic tissue in both HT and SAT but by sonoelastography the SAT gland is profoundly stiffer than HT tissue which is somewhat stiffer than normal controls(86). The radio nuclide thyroid uptake and scanning in HT is variable with elevated, depressed or normal results reported. 18 F-FDG-PET in Hashimoto’s on the other hand is similar to that seen in SAT with usually very positive uptake reported(191) , (179) , (192). Magnetic resonance imaging does not differentiate between HT and SAT(184) and is therefore, like 123-I and PET scanning, of little value in separating the patient with painful Hashimoto’s from the SAT patient.

Hemorrhage into a cyst in a nodular thyroid gland may be confused with subacute thyroiditis although the condition may be associated with an autonomously functioning nodule (193). Hemorrhage is usually more sudden and transient, a fluctuant mass may be found in the involved region, and the erythrocyte sedimentation rate is normal. Occasionally, subacute thyroiditis mimics hyperthyroidism in a patient whose RAIU is suppressed by the administration of exogenous iodine. This event occurs particularly in transient thyrotoxicosis induced by iodine (167). The sudden onset of subacute thyroiditis, the presence of toxic symptoms without the typical signs of long-term hyperthyroidism, the tender gland, the constitutional symptoms, and the high erythrocyte sedimentation rate are helpful in making the differentiation. In some instances, measurement of antibodies and thyroid-stimulating immunoglobulins, and observation of the course of the illness may be required to confirm the diagnosis.

The single disease entity that is probably most difficult to differentiate from subacute thyroiditis is a variant of lymphocytic thyroiditis (168). This condition is unrelated to iodine ingestion and most likely is a variant of autoimmune thyroiditis. The patient presents with goiter, mild thyrotoxicosis, and a low RAIU. The course of the disease is indistinguishable from that of subacute thyroiditis and proceeds from a thyrotoxic phase through a hypothyroid phase to spontaneous remission with normalization of thyroid function. The goiter is however, typically painless and there are no associated systemic symptoms. This condition has been formerly confused with subacute (de Quervain’s) thyroiditis, which likely has led to the descriptive terms of silent, painless, or atypical subacute thyroiditis to refer to this entity. The most helpful distinguishing features, short of histologic examination of biopsy material, are the absence of pain and a normal erythrocyte sedimentation rate. (See also Chapter 13.)

Localized subacute thyroiditis, with induration, mild tenderness, and depressed iodine binding visualized on scan, can clearly be very suggestive of acute suppurative thyroiditis or even thyroid cancer. One series indicated a surprisingly high frequency of focal involvement observed among those with SAT(181). Indeed this differential is quite difficult when incidentally discovered lesions are evaluated. Thyroid lesions incidentally identified by 18F-FDG-PET/CT are said to have malignant potential in 14-63% of lesions identified(194) , (195). Among the other diagnostic findings reported to account for such FDG-PET incidentalomas is focal SAT(185). Usually the degree of pain and tenderness, elevated erythrocyte sedimentation rate, leukocytosis, and remission or spread to other parts of the gland make clinical differentiation possible. Traditional ultrasonography may reveal localized hypoechoic area in the thyroid and gray-scale and color Doppler sonography may be helpful in this situation (180) , (196). Sonoelastography of these nodular lesions yields abnormally inelastic results in both SAT as well as thyroid cancer(197). Occasionally, magnetic resonance imaging (184), where the image of SAT is characterized by low intensity, may assist the clinician in differential of these nodular lesions. The hypoechoic area can reflect the degree of inflammation and thyroid hormone levels (182). However, a fine needle aspiration is required for a definitive differentiation between these two processes (193) as well as the other entities noted above(97).

Therapy

In some patients with SAT, no treatment is required. However, for many, some form of analgesic therapy is required to treat the symptoms of the disease until it resolves. At times, this relief of symptoms can be achieved with non-steroidal anti-inflammatory agents or aspirin. However, if this fails, as it often does when the symptoms are severe, and after acute suppurative thyroiditis had been definitively ruled out as outlined above, prednisone administration should be employed (37) , (101). Large doses promptly relieve the symptoms through non-specific anti-inflammatory effects. Treatment is generally begun with a single daily dose of 40 mg prednisone. After one week of this treatment, the dosage is tapered over a period of 6 weeks or so. The relief of the tenderness in the neck is so dramatic as to be virtually diagnostic of subacute thyroiditis. As the dose is tapered, most patients have no recrudescence of symptoms, but occasionally this does occur and the dose must be increased again. Alternatively oral cholecystographic agents (such as sodium ipodate or sodium iopanoate [neither of which is available in the USA at present]) may be used safely and effectively for the management of the thyrotoxicosis in these patients even when they have relapsed after corticosteroid therapy (198). The recurrent rate of subacute thyroiditis after cessation of prednisolone therapy is about 20% but no difference has been found in routine laboratory data between recurrent and non-recurrent groups of patients (199). Levothyroxine administration has been touted as useful in situations where the patient is not already hyperthyroid due to the release of thyroidal contents into the circulation(101). The effectiveness of this strategy on shortening the clinical course or reducing the frequency of reoccurrence is not clear. It is also of course necessary to administer thyroid hormones, at least transiently, if the patient enters a phase of symptomatic hypothyroidism subsequent to the acute inflammation. Levothyroxine should only be administered for up to a year, otherwise, the return of thyroid function to normal, which presumably is facilitated by TSH, may be prevented or delayed. During the recovery process, there may be a marked but transient increase in the 24 hour radioactive iodine uptake which can reach levels typical of Graves’ disease but thyrotoxicosis is not simultaneously present. This elevation of iodine uptake occurs prior to re-establishment of normal thyroid function and should not be confused (taken out of context) with hyperthyroidism due to Graves’ Disease. Surgical intervention is not the primary treatment for subacute thyroiditis. Experience from the Mayo clinic (200) has shown however that if surgery is performed for a clinically indeterminate thyroid nodule, resection is safe and with low morbidity. Because of the possibility of associated papillary cancer further cytological examination should be performed in patients presenting with a persistent hypoechoic area larger than 1 cm by ultrasonography (183).

Prognosis

In 90% or more of patients, there is a complete and spontaneous recovery and a return to normal thyroid function. However, the thyroid glands of patients with subacute thyroiditis may exhibit irregular scarring between islands of residual functioning parenchyma, although the patient has no symptoms. Up to 10% of the patients may become hypothyroid and require permanent replacement with levothyroxine. In a retrospective study of 252 patients with SAT permanent hypothyroidism occurred in 5.9% and all these had bilateral hypoechogenic areas on thyroid ultrasound at initial presentation suggesting that this may be a useful prognostic marker for the potential development of thyroid dysfunction after SAT (201). However, permanent hypothyroidism is significantly less common in SAT compared to the outcome noted in amiodarone induced thyrotoxicosis type 2 (the destructive thyroiditis) (202). It is of interest that elevated levels of serum thyroglobulin may persist well over a year after the initial diagnosis, indicating that disordered follicular architecture and/or low grade inflammation can persist for a relatively long period (203).

A minority (< 1%) of those presenting with clinical SAT in Japan have been recently reported to return (n= 7) a mean 4.7 months later with findings consistent with Graves’ disease(189) (GD). Review of the other 26 cases summarized in the report of Nakano et al. indicates a similar interval between the diagnosis of SAT and subsequent GD presentation, a clearly elevated RAIU in the GD phase of all the reports where an uptake is reported (14/26 [54%]) and a change in thyroid antibody positivity in 50% of those evaluated in both (6/26 [23%]) the SAT and GD presentation(189). Combining Nakano’s cases with their review of the literature, fully 21/31 [68%] of cases labeled as SAT were diagnosed clinically without a radioactive iodine uptake assessment and a further 4/12 [33%] of those diagnosed as SAT with a RAIU available, had uptakes greater than 10% at the time of the SAT diagnosis(189). This brings into question the true incidence of this reported transition from presumably non-autoimmune SAT to clearly immune mediated GD.

RIEDEL’S THYROIDITIS

Initially described by Semple in 1864 and Bolby in 1888(204), the condition then again reported in 1896 by Riedel as an “eisenharte” (iron hard) fixed and usually painless enlargement of the thyroid (205-207) is a chronic sclerosing thyroiditis, occurring especially in women, that tends to progress inexorably to complete destruction of the thyroid gland and frequently causes pressure symptoms in the neck (208) , (205) , (209). It is exceedingly rare with estimated incidence of 1.06 cases per 100,000 population and 37/57,000 (0.06%) surgical outcomes over a 64 year period(210). In the Mayo Clinic series (210) it occurred approximately one-fiftieth as frequently as Hashimoto’s thyroiditis. It is more frequent in women (F:M 3.1:1)(211) , (117) , (205) , (37) who were recently reported to represent 81% of those with confirmed Riedel’s in a Mayo clinic series(212). Riedel’s thyroiditis is principally reported to occur in the 30- to 50 year age group(212) , (211) , (37).

Pathology

The thyroid gland is normal in size or enlarged, focally or symmetrically involved, and extremely (woody) hard. The gland is replaced by the inflammatory process which may extend into adjacent structures including parathyroid, skeletal muscle, nerves, blood vessels as well as the trachea(213). Gross observation of the mass reveals a pale gray appearance similar to a malignant lesion(214). There are no tissues planes visible and the cut surface of the mass is stark white due to the hypovascularity of the tissue(215). Histologically normal tissue is replaced by inflammatory cells, predominantly lymphocytes, plasma cells, eosinophils(211) , (216),and small amounts of colloid(217-219) in a dense matrix of hyalinized connective tissue. Characteristically, an inflammatory reaction of the venous vascular structures has been described(214). An oft stated criterion useful in assuring the pathologic diagnosis is to note the absence of granulomatous tissue and malignancy(214) , (211) , (215). A potentially difficult differential diagnostic decision may be encountered with rare sarcomas of the thyroid region(220) or with the pauci-cellular variant of anaplastic thyroid cancer which although similar in gross appearance will have distinctive histopathologic immunohistochemical findings(221).

Etiology

Although the etiology is unclear, Riedel’s has been characterized in various ways including as the cervical manifestation of a systemic fibrosing disorder with identical histopathological appearance(222). Further Riedel’s has been called a variant of Hashimoto’s, a primary infiltrative disease of the thyroid and even a manifestation of end stage deQuervain’s thyroiditis(223) , (208) , (224) , (219). Riedel’s has been reported following subacute thyroiditis (223) and a case of concurrent Riedel’s, Hashimoto’s and acute thyroiditis has also been reported (225). The report of a case of Graves’ disease following Riedel’s thyroiditis (226) and the observation that the B cell proliferation observed in the course of these diseases has been shown to be polyclonal (227) supports the notion of autoimmune mechanisms in the etiology of the Riedel’s condition. The occurrence of marked tissue eosinophilia and the extracellular deposition of eosinophil granule major basic protein suggests a role for eosinophils and their products in the development of fibrosis in Riedel’s thyroiditis (216). Fibrosis may also be related to the action of TGF beta 1, as seen in murine thyroiditis (228). Most recently links between Hashimoto’s, IgG4-related systemic disease (IgG4-RSD) and Riedel’s have been reported (229-231). Supporting evidence showing the presence of IgG4-bearing plasma cells in thyroidectomy specimens and other affected organs (229) , (232). A recent comprehensive review of potential etiology has been published(213).

Clinical Features

Riedel’s thyroiditis usually presents as a hard thyroid mass, frequently associated with compressive symptoms(208) , (212) , (211) , (210) , (233) , (205) , (37) and historically has been diagnosed by a surgeon faced with an inflammatory mass of fibrosclerosing tissue(234) , (235) when expecting a thyroid tumor(218). Intraoperative diagnostic confusion with anaplastic thyroid cancer(221), sarcoma of the thyroid(220), thyroid lymphoma(236) or fibrosing Hashimoto’s thyroiditis(237) have been reported. Riedel’s may occur in a multinodular goiter or as a rapidly growing hard neck mass in a previously normal gland mimicking thyroid cancer(234) , (238). As the extent of the fibrosis increases or concomitant Hashimoto’s is present, involvement of a critical mass of the thyroid tissue results in primary hypothyroidism in 25-80% of cases(217) , (239) , (208) , (212) , (218). Antithyroid antibodies are present in 67-90% of reported cases(212) , (209). Extension of the inflammatory process into underlying parathyroid glands may result in non-surgical hypoparathyroidism(239-243) in up to 14% cases encountered(212). The fibrosis may remain relatively stable or progress resulting in local complications by compressing the trachea or esophagus and resulting in symptoms of local pressure, dyspnea, dysphagia as well as stridor out of proportion of the size of the mass(244) , (245), with subsequent hoarseness, and aphonia, with involvement of the recurrent laryngeal nerves(237) , (243). Further extension of the inflammatory process involving neck structure can result in Tolosa-Hunt syndrome(246), Horner’s syndrome(243), occlusive phlebitis of cervical vessels(247-249). The occurrence of cerebral sinus thrombosis suggests that Riedel’s thyroiditis may cause venous stasis, vascular damage, and possibly hypercoaguability (250). Estimates as high as 38% associate Riedel’s thyroiditis with similar fibro-sclerotic processes in other areas(212). Subcutaneous fibrosclerosis has also been noted but it is very rare(251). The lesions appear in the lacrimal glands, orbits(252), parotid glands(253), mediastinum(214) , (212) , (210) , (218), coronary arteries(212), retroperitoneal tissues(239) , (208) , (210) , (254) , (255), bile ducts(256) , (211) and pancreas(256) in varying combinations in the syndrome of multifocal fibro-sclerositis (257) , (258).

Clinical Evaluation

Initially the patient with a thyroid mass will need an assessment of thyroid function, and may benefit from screening thyroid antibodies(259). A complete blood count reveals normal to elevated white blood cell counts. The erythrocyte sedimentation rate is usually moderately elevated(218) , (219). Due to the potential of hypoparathyroidism an assessment of calcium status is prudent(213). Ultrasonography of the thyroid typically reveals a diffuse, hypoechoic, hypovascular appearance due to the extensive fibrosing process(234) , (239) , (226) , (260) , (261). Unique to the findings in Riedel’s thyroiditis is an encasement of the carotid arteries, not typically seen in other forms of multinodular or Hashimoto’s goiter(212) , (262). Sonographic elastography demonstrates significant stiffness of the tissue compared to normal thyroid(262). At this point in the evaluation a fine needle aspiration (FNA) of the thyroid mass is usually obtained. FNA results are typically non-diagnostic due the lack of thyroid follicular cells(212) , (211) , (215) , (37) but may contain evidence of the inflammatory process(212), fibrous tissue and myofibroblasts(263), or even cytopathology findings consistent with follicular neoplasm(241).

In patients with significant obstructive symptomatology a neck computed tomography (CT) study may be ordered to assess tracheal integrity. CT images characteristically demonstrate hypodense tissue which does not enhance with iodinated contrast in the affected area(260). CT images readily reveal extrathyroidal extension of the inflammatory process(260) , (264), and have been reported to document arterial encasement in about half of subjects and jugular involvement in about one third of cases(212). Magnetic resonance imaging (MRI) can be expected to show hypointense images on both T1 and T2 weighted images(260) and variable enhancement patterns after gadolinium enhancement(265) , (260) , (261) , (264) , (266). Unlike the hypointense images produced by CT and MRI, Fluorine-18 fluorodeoxyglucose [FDG] positron emission tomographic (PET) images have shown metabolic activity not only in extrathyroidal masses associated with the systemic inflammatory process but also increased glucose metabolism in the Riedel’s thyroid, likely as a result of active inflammation involving lymphocytes, plasma cells and fibroblast proliferation (267) , (268) , (262). FDG metabolic activity can also be used to assess a patient’s response to therapy (267) , (268) but not all reports of this phenomenon had documented this effect(262).

Although not typically indicated in the evaluation of a eu- or hypothyroid individual with a thyroid mass, 99mTc-pertechnetate or 123/131-I scanning in Riedel’s is typically compromised due to low uptake and patchy images typical of other forms of chronic thyroiditis(211) , (218) , (219). An exception to the utility of radio nuclide scanning is found in exactly the circumstance where a nuclear medicine scan is indicated that being in the thyrotoxic patient presenting with the thyroid mass. In those with Graves’ disease or a toxic thyroid nodule, the hyperfunctioning portion of the thyroid is indeed well visualized while the portion involved with Riedel’s typically demonstrates no uptake(226). Finally, it has recently been reported that gallium scanning may. As expected, also demonstrate significant uptake in the Riedel’s lesion(88).

Establishing the diagnosis of Riedel’s requires histopathologic confirmation at the present time. Biopsy material may be obtained by Tru-cut needle biopsy(269), open biopsy(37) or at the time of decompressive thyroidectomy. Histopathologic findings required to establish this diagnosis include: 1) The presence of an inflammatory process in the thyroid with extension into surrounding tissue. 2) The inflammatory infiltrate should contain no giant cells, lymphoid follicles, oncocytes or granulomas. 3) There should be evidence of occlusive phlebitis. 4) There should be no evidence of thyroid malignancy(270). In light of the recent work defining Riedel’s as a potential manifestation of the IgG4-related systemic sclerosing disease, the potential role of incorporating the presence of immunohistochemical assessment of tissue lymphocytes and the measurement of IgG4 levels into working diagnostic criteria remains to be defined.

Management of Riedel’s Thyroiditis

Although there is no specific therapy for Riedel’s thyroiditis, several management strategies are available dependent on the clinical features of the disease in the individual patient. Patients commonly undergo surgery for relief of obstructive symptoms. Histopathology allows for the definitive establishment of the diagnosis. Most are then treated medically for associated hormone deficiencies with levothyroxine and /or calcium along with with calcitriol, but this supplementation is not thought to influence the course of the disease. Finally, anti-inflammatory treatment aimed at diminishing the inflammatory mass is applied.

Surgical therapy for debulking and symptoms relief should usually be limited to isthmusectomy (211) , (241) , (233) , (37) when total thyroidectomy is not possible. Due to the obliteration of tissue planes associated with the advancing inflammatory process there is an enhanced danger of hypoparathyroidism and recurrent laryngeal nerve injury even when limited surgery is performed by experienced surgical specialists as documented in a recent series from the Mayo clinic where 39% of Riedel’s patients suffered surgical complications(212). Previous and contemporary experience therefore recommends that extensive surgical procedures be considered inappropriate (212) , (215) , (241) , (37).

Medical therapy to arrest progression of symptomatic disease should be pursued after establishment of a firm diagnosis. Corticosteroid therapy has been found to be effective in some cases (271) , (240) , (272) , (265) , (269) , (258) , (273-275) , (250) , (276) , (209), probably those with active inflammation(229) , (274). Initial doses of up to 100mg per day of prednisone have been used(211) but sustained improvement has been reported with lower doses of 15-60 mg per day (271) , (258) , (273) , (276) , (236) , (243). There are no controlled trials of steroid therapy in Riedel’s and although some patients obtain long term benefit after steroid withdrawal (222) , (258) , (274) others may relapse usually leading to the reintroduction of glucocorticoids or the addition of alternative anti-inflammatory therapy(277) , (278) , (243). The reasons for this variation are unclear but inflammatory activity and duration of disease may be relevant factors. Most recently, the observation that smoking history may play a role in the responsiveness of Riedel’s pathology to glucocorticoid therapy has been published(212).

In those who fail to respond to steroid therapy or relapse after withdrawal, tamoxifen therapy should be tried. Several reports have described an encouraging response with this agent, admittedly in only a small number of patients (279-282) , (277) , (283) , (284) , (243). It is possible that tamoxifen acts in Riedel’s by inhibition of fibroblast proliferation through the stimulation of TGF beta (285-287). Tamoxifen in combination with prednisone or tamoxifen as monotherapy have both been reported to be effective (277) , (283) , (284) , (243). There appears to be a persistent benefit to tamoxifen therapy during continued application in most but not all cases (212) , (278). Recent data on effective therapy with other immunosuppressive agents indicates that a combination of mycophenolate mofetil and prednisone has been observed to have successfully treated an individual who failed a prednisone and tamoxifen combination (278). The potential usefulness of this intervention awaits confirmation.

Summary of Riedel’s Thyroiditis

Riedel’s thyroiditis should be suspected in patients with a thyroid mass and unique clinical features. Findings increasing the likelihood of Riedel’s include local restrictive or infiltrative symptoms out of proportion to the size or extent of the mass or simultaneous hypocalcemia. Surgical intervention should be limited to rule out the presence of malignancy and obtain the histopathologic confirmation. Once Riedel’s thyroiditis is established, a search for related fibrotic conditions and medical treatment should be pursued. Replacement of thyroxine and when appropriate, calcium and vitamin D therapy should be begun along with anti-inflammatory medications.

RARE INFLAMMATORY OR INFILTRATIVE DISEASES

In addition to the varieties of thyroiditis already mentioned, which are diseases specifically of the thyroid gland, generalized or systemic diseases may also involve the thyroid gland (37). The lesions of sarcoid may appear in the thyroid gland of 1-4% 0f patients with systemic sarcoidosis(288). Thyroid dysfunction has been reported very infrequently (1-3%)(289) in systemic sarcoidosis but a recent series of patients with cutaneous sarcoidosis noted abnormal TSH values in 26% compared to the US population expectation of about 10%(289). Most thyroid dysfunction was mild, a male to female ratio of abnormal thyroid function of 1:1 was noted, Caucasians were more frequently affected than African Americans and 20% of those with abnormal TSH were classified as hypothyroid(289). Infiltration of the thyroid with sarcoidosis is reported to occur in about 5% of patients with sarcoidosis(290). Multinodular goiter has recently been described as an initial presenting manifestation in a woman eventually diagnosed with systemic sarcoidosis(288). This case illustrates the difficulty in diagnosing the cause of supine dyspnea in patients with sarcoidosis, illustrating the potential of a thyroid contribution to the overall clinical picture(288).

Deposits of amyloid are quite common in systemic amyloidosis(291) and rarely causes goiter with more than 200 cases in the worlds literature(292) , (291) , (293) , (294). Although senile transthyretin amyloidosis is primarily associated with amyloid deposits in the heart, familial forms of amyloidosis due to transthyretin gene mutations are associated with deposits of amyloid in multiple tissues(295) . Amyloid goiter with transthyretin activity in a patient with chronic renal failure has been reported (295). Clinically, an amyloid goiter may be progressive, diffuse and rapidly lead to compressive symptoms(291) , (294). Thyroid function in association with an amyloid goiter is normal in 2/3 of cases, 1/7 present with hypothyroidism and fewer demonstrate other abnormalities of thyroid function(291). In addition to the focal deposition of amyloid in thyroid tissues associated with most cases of medullary thyroid cancer(296), several cases of papillary thyroid cancer have been reported in association of amyloid goiter(297-299) , (291). Amyloid goiter may be readily diagnosed by fine needle aspiration biopsy(300) and has been reported in conjunction with infiltration of other endocrine organs such as the pituitary(293). It has been suggested that the thyroid FNA is both an accurate and relatively safe site of biopsy to confirm the presence of systemic amyloidosis(291).

Painless thyroiditis has been noted in a woman with rheumatoid arthritis and secondary amyloidosis infiltrating the thyroid gland (301). Radiotherapy for tonsillar carcinoma has been reported to result in thyroiditis (302). Irradiation to the thyroid during therapy for breast cancer or lymphoma can also induce hypothyroidism. Following 131 I therapy for Graves’ disease or toxic multinodular goiter, thyroiditis which is occasionally symptomatic, may develop. This situation is discussed in Chapters 11 and 18. Therapy should be directed toward the primary disease rather than the thyroid, but administration of thyroid hormone may be necessary if destruction of thyroid tissue is sufficient to produce hypothyroidism. Finally, surgery to the neck, associated with mechanical manipulation of the thyroid during laryngectomy or parathyroid surgery can result in a painless subacute thyroiditis like picture (303-305).

SUMMARY: THYROIDITIS, ACUTE, SUBACUTE AND RIEDEL’S

The thyroid, like any other structure, may be the seat of an acute or chronic suppurative or non-suppurative inflammation. Various systemic infiltrative disorders may leave their mark on the thyroid gland as well as elsewhere. Infectious thyroiditis is a rare condition, usually the result of bacterial invasion of the gland. Its signs are the classic ones of inflammation: heat, pain, redness, and swelling, and special ones conditioned by local relationships, such as dysphagia and a desire to keep the head flexed on the chest in order to relax the paratracheal muscles. The treatment is that for any febrile disease, including specific antibiotic drugs if the invading organism has been identified and its sensitivity to the drug established. Otherwise, a broad-spectrum antibiotic may be used. Surgical drainage may be necessary and a search for a pyriform sinus fistula should be made, particularly in children with thyroiditis involving the left lobe. Important to differentiate from the acute bacterial infection of acute suppurative thyroiditis (AST) is subacute (granulomatous) thyroiditis (SAT) which is far more common than AST and is characterized by a more protracted course, usually involving the thyroid symmetrically. The gland is also swollen and tender, and the systemic reaction may also be severe, with fever and an elevated erythrocyte sedimentation rate. During the acute phase of the disorder, tests of thyroid function disclose a suppression of TSH, increased serum concentrations of T4, T3, and thyroglobulin while a diminished thyroidal RAIU is observed. The cause of SAT has been established in only a few instances in which a viral infection has been the initiating factor. There may be repeated recurrences of diminishing severity. Usually, but not always, the function of the thyroid is normal after the disease has subsided. Subacute thyroiditis may be treated with rest, non-steroidal anti-inflammatory drugs or aspirin, and thyroid hormone. If the disease is severe and protracted, it is usually necessary to resort to administration of glucocorticoids, but recurrence may follow their withdrawal. It is precisely the observational nature of SAT therapy combined with the use of glucocorticoids which make it so critical to definitively rule out the bacterial etiology of AST in the patient presenting with a painful thyroid.

Riedel’s thyroiditis is a chronic sclerosing replacement of the gland that is exceedingly rare. The process extends to adjacent structures, making any surgical intervention very difficult and potentially harmful. The exact cause of Riedel’s thyroiditis remains unknown, and no specific treatment is available beyond limited resection of the thyroid gland to relieve the symptoms of tracheal or esophageal compression. The use of anti-inflammatory medical treatments has been demonstrated to have significant benefits to outcome. Sarcoidosis may involve the thyroid, and amyloid may be deposited in the gland in quantities sufficient to cause goiter. In all of these diseases it may be necessary to give the patient levothyroxine replacement therapy if the function of the gland has been impaired.
